4-Axis CNC Router 1530RH

Model: RC1530RH
Category: 4 Axis CNC Router
Brand: Roctech®
  1. Syntec Controller, Taiwan Hiwin Square Rails, Yaskawa Servo Motor and Driver, Italian HSD Air cooling ATC spindle.

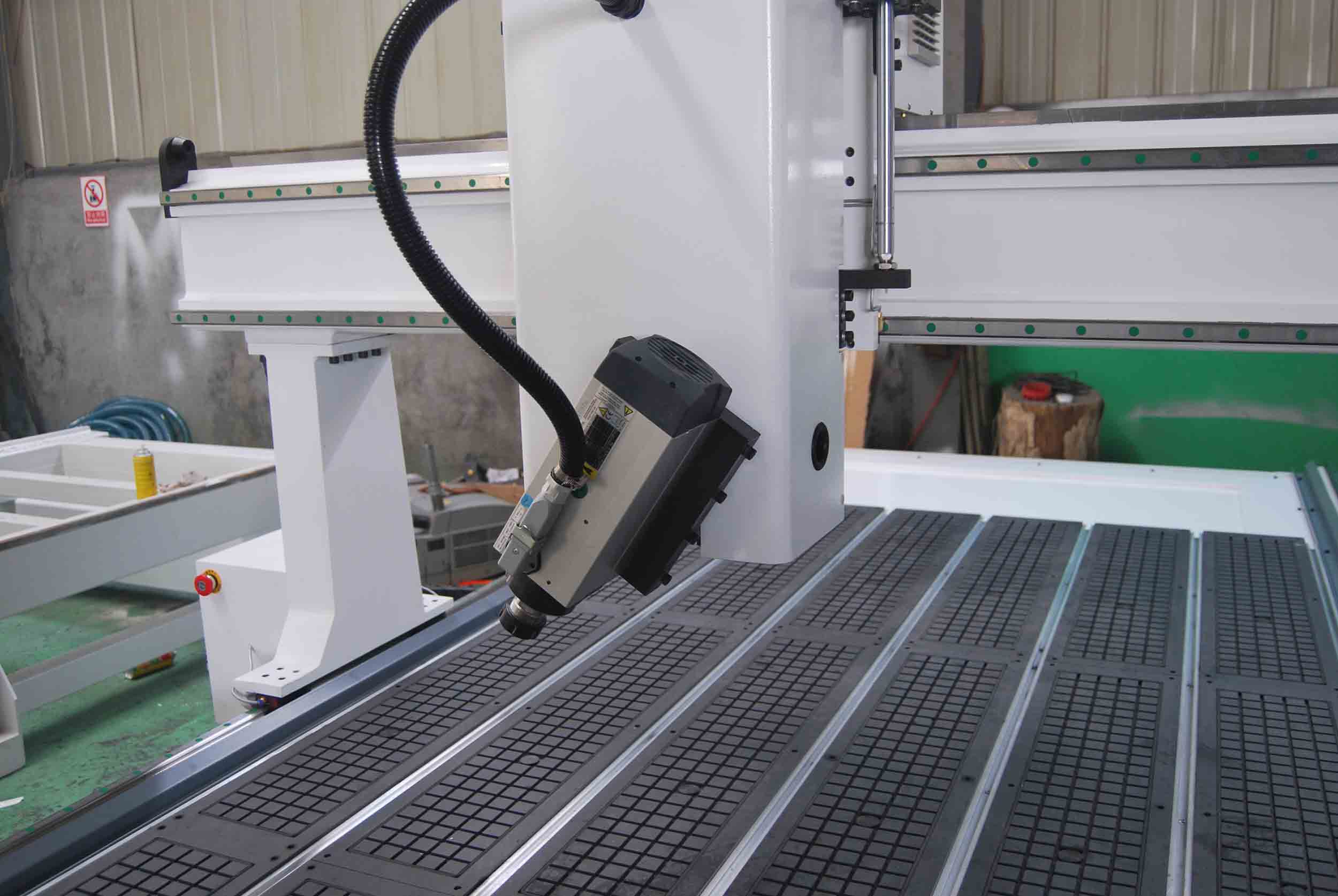

  2. The spindle(B axis) can rotate +/- 90 degree, for side milling, drilling, cutting, lock slot, very suitable for processing of on different surface carving.

  3. Considering to the costumer different sizes required, we can provide RC1325RH-ATC, RC2030RH-ATC, RC2040RH-ATC etc.

  4. Cabinet processing: insulation, plastic and chemical, PCB, ABS, PP, PE and other carbon mixture.

  5. Decoration industry: Acrylic, PVC, MDF, plastic and copper and aluminum and other soft metal flat engraving and milling.


Technical Parameter of 4 Axis CNC Router RC1530RH

Parmeter

RC1530RH

X,Y,Z,A,C Traveling

1500*3000*450mm*±90degree

Table

Vacuum and T-slot Combined Table

Frame

Welded Structure

X,Y,Z Drive System

X,Y Helical rack and pinion,Z Ball screw

Max Rapid Speed

35000mm/min

Max Working Speed

20000mm/min

Spindle Power

4.5KW

Spindle Speed

0-18000RPM

Driving System

Ysakawa Servo Motors

Working Voltage

AC380v,50/60Hz,3Ph

Command Language

G Code

Operating System

Syntec Control

Software

UG,PowerMill,Artcam,Type 3

Gross Weight

2450KG

Options

Vacuum pump
