5-Axis CNC Router F1838-5 Axis CNC Router-Workworking Machinery

OSAI Controller, Taiwan Hiwin Square Rails, Yaskawa Servo Motor and Driver, Italian HSD 2 AXIS HEAD HS655 DOUBLE-COLUMN Spindle.
Z-axis travel can be heightened to 1.2 meters, very suitable for processing large-scale three-dimensional surface.
Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship mold, wooden aviation mold, rail wooden mold and wooden train mold.
Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.

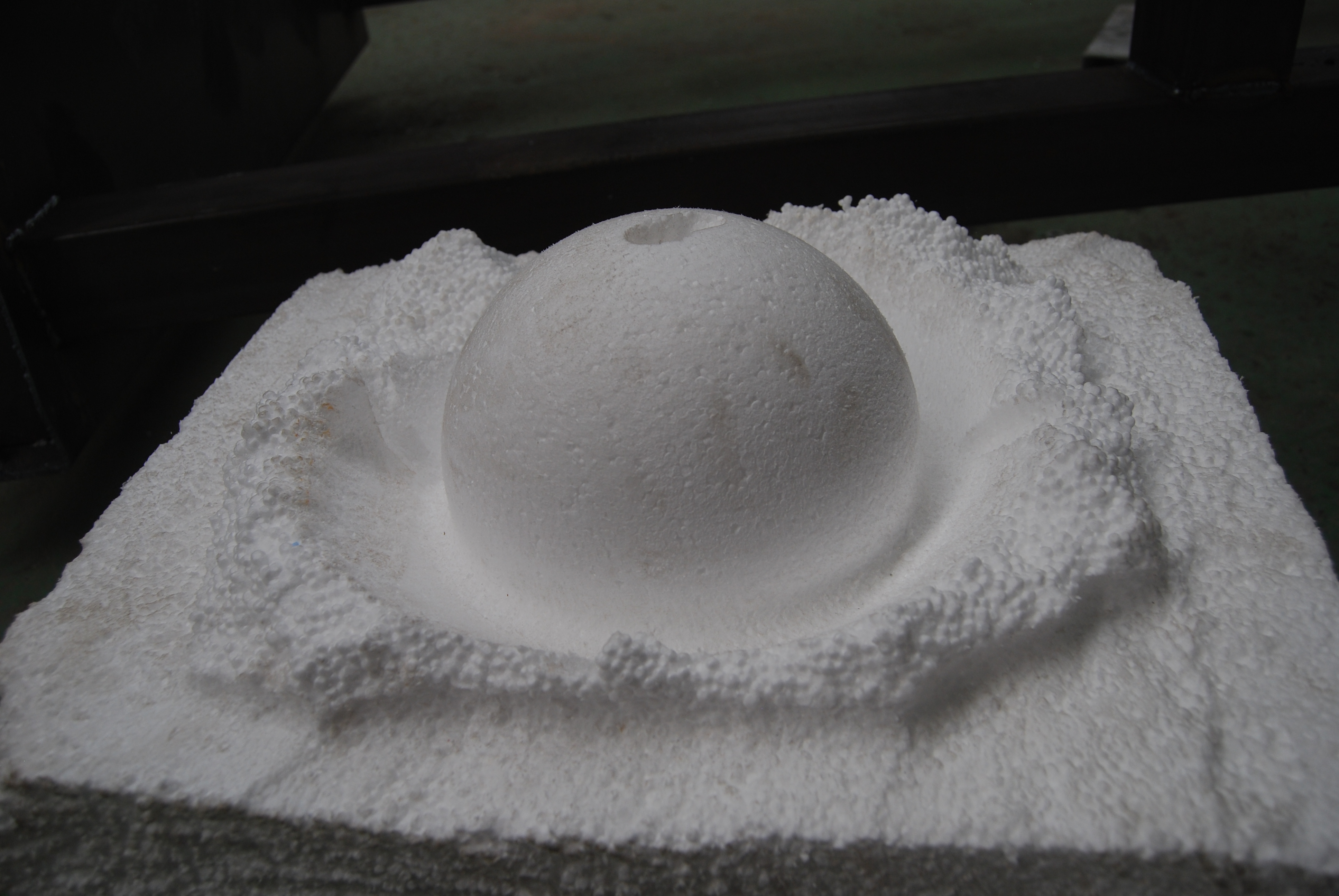

Machinable Materials: Foam,Epoxy Tooling Board(Machinable Resin Board),Plastocene.

Parmeter	RCF1838
X,Y,Z,A,C Traveling	180038001200±245degree*±120degree
Table	Movable Milling Steel（with T-slot）
Frame	Heavy Steel
X,Y,Z Drive System	X,Y Helical rack and pinion,Z Ball screw
Max Rapid Speed	35000mm/min
Max Working Speed	20000mm/min
Spindle Power	10.0KW
Spindle Speed	0-24000RPM
Driving System	Yaskawa Servo Motors
Working Voltage	AC380v,50/60Hz，3Ph
Command Language	G Code
Operating System	OSAI
Software	CATIA，UG，AlphaCam
Gross Weight	8500KG
Options	Syntec Control
