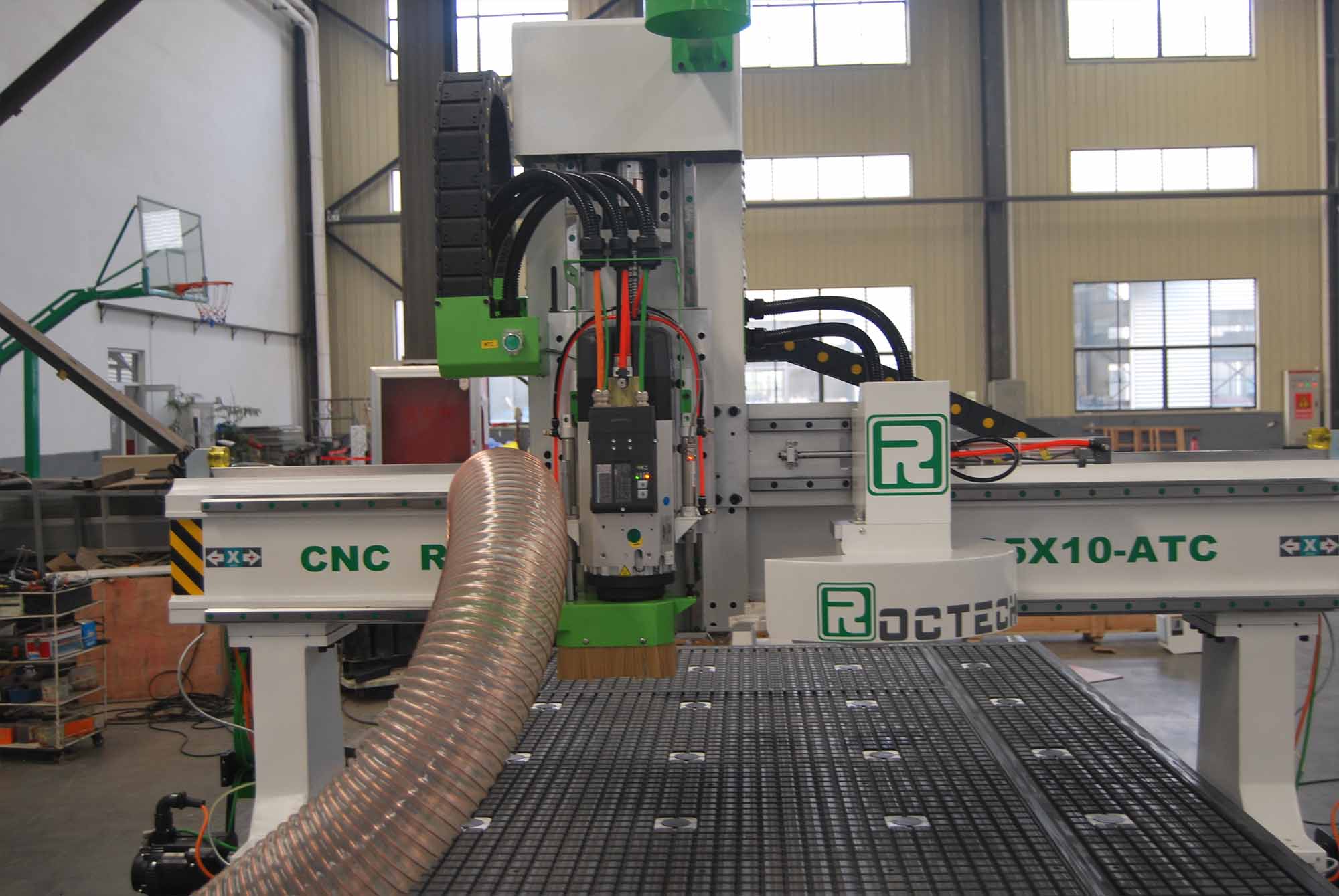

With Syntec Controller, Taiwan Hiwin Linear Rails, Yaskawa Servo Motor and Driver, Italian ATC spindle.
With auto positioning rods, can locate the materials automatic, save much time and improve the work efficiency.
Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
Considering to the customers' different requirements about the sizes,we can provide: RC1325-ATC, RC2030-ATC, RC2040-ATC, RC2550-ATC etc.
| X,Y,Z Working Area | 1500x3000x250mm |
| Table Size | 1560×3440mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined |
| Frame | Welded structure |
| X, Y Structure | Rack and Pinion Drive |
| Z Structure | Hiwin Linear Rails and Ball Screw |
| Max. Power Consumption | (Without Spindle) 4.5kw |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.6kw |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Yaskawa servo |
| Working Voltage | AC 380V/50/60Hz,3PH |
| Command Language | G Code |
| Operating System | Syntec Control System |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER32 |
| X,Y Resolution | <0.03mm |
| Software Compatibility | Type3/ Artcam software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Packing Size | 3700X2250X2250mm |
| N.W. | 2600KG |
| G.W. | 2650KG |
| Optional Parts | Dust Collector，Vacuum Pump，Rotary System |
