EPS CNC Processing Center H1530-Big CNC for Molds (EPS)-Workworking Machinery

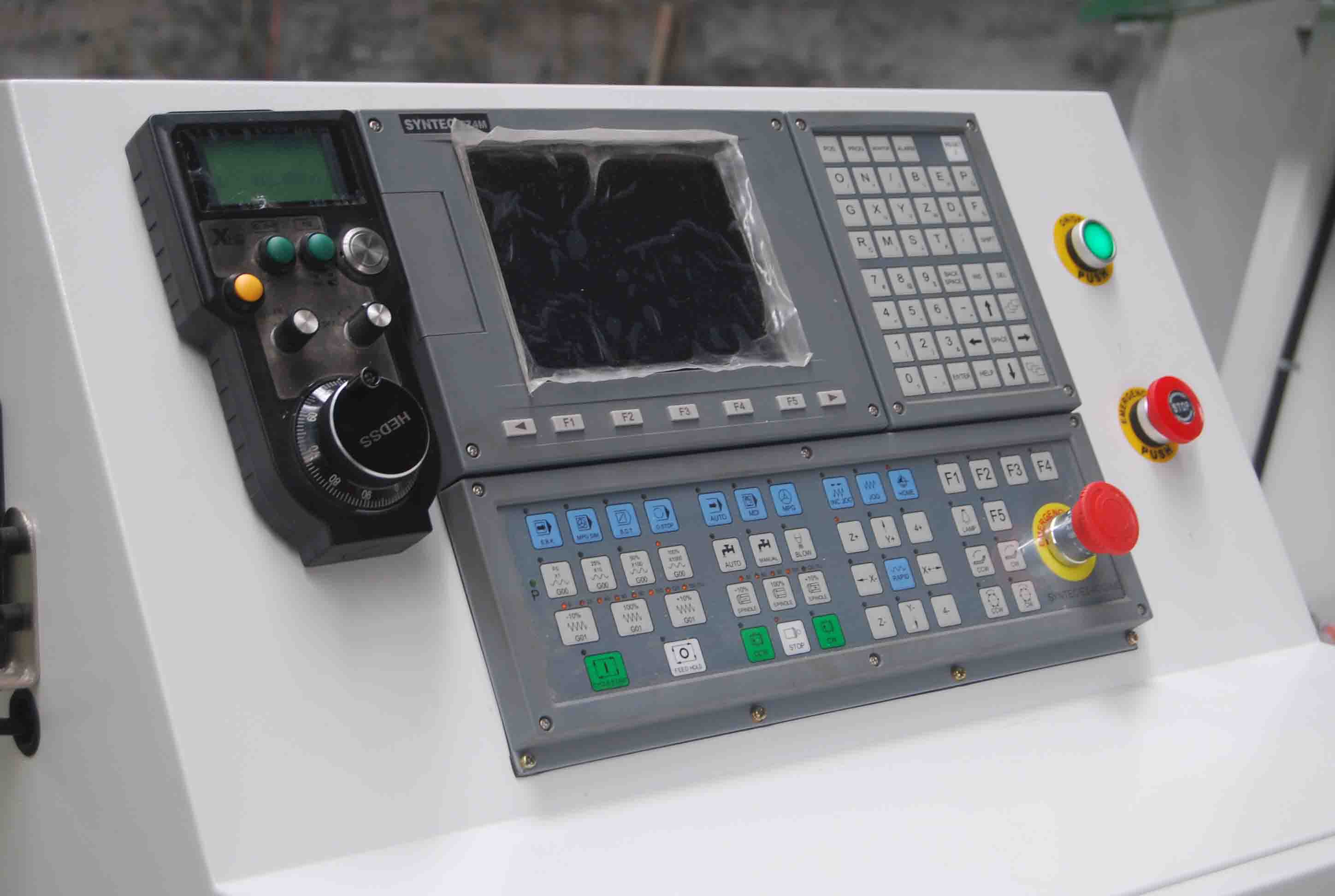

The machine adopts Taiwan Syntec Control System and Japanese Drivers, Taiwan Hiwin Rails, and Italian spindle specilized for molds
Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.

Parmeter	RCH1530
X,Y,Z,A,C Traveling	150030001200mm
Table	Steel T-slot Table
Frame	Welded Structure
X,Y,Z Drive System	X,Y Helical rack and pinion,Z Ball screw
Max Rapid Speed	25000mm/min
Max Working Speed	15000mm/min
Spindle Power	7.5KW
Spindle Speed	0-11000RPM
Driving System	Ysakawa Servo Motors
Working Voltage	AC380v,50/60Hz，3Ph
Command Language	G Code
Operating System	Syntec Control
Software	UG,CATIA,Master Cam,Type 3,Artcam
Gross Weight	5800KG
Options	Fanuc Contorl System
