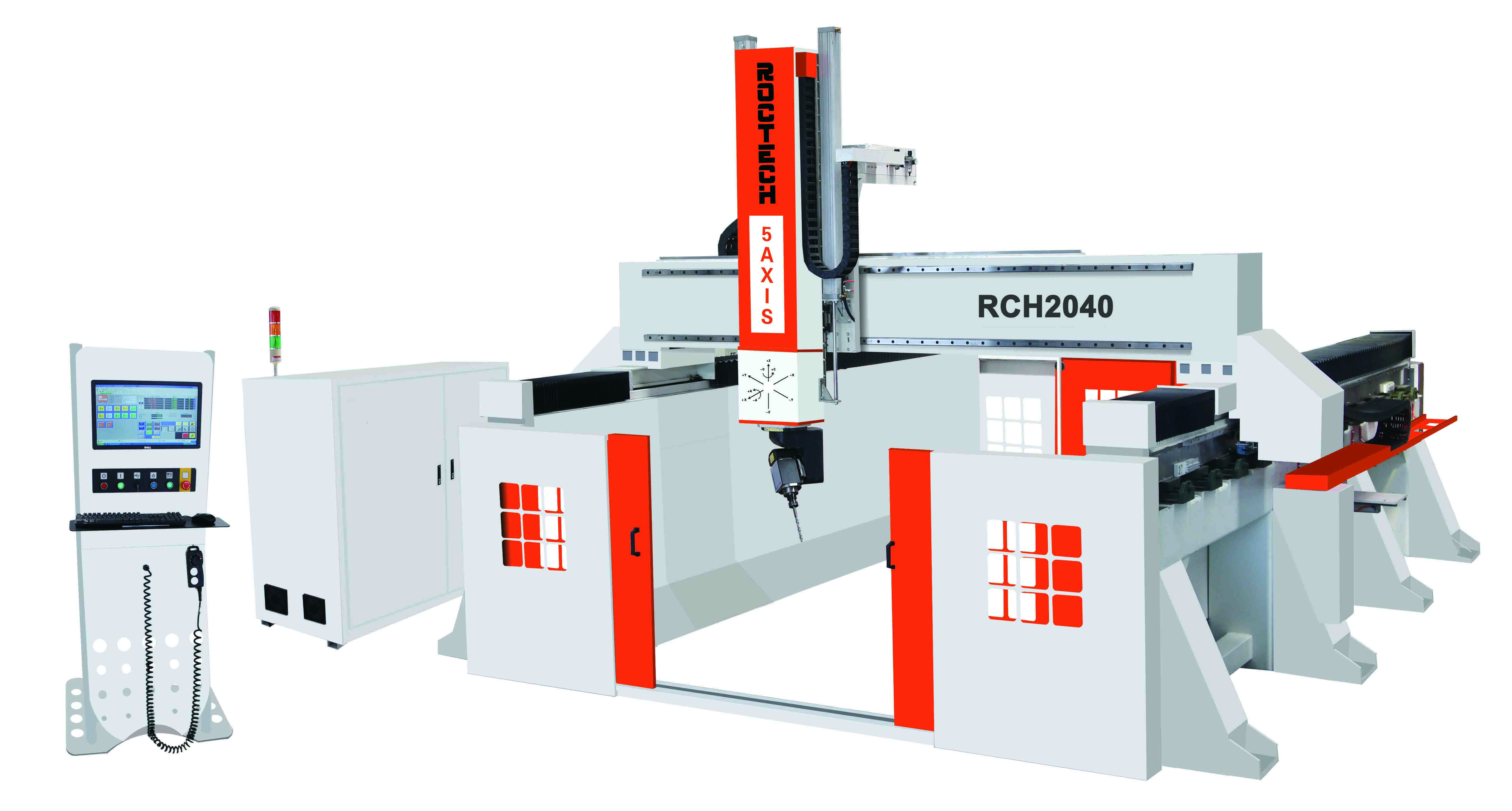

EPS CNC Processing Center H2040-Big CNC for Molds (EPS)-Workworking Machinery

1. With Syntec Controller, Taiwan TBI Linear Rails, Yaskawa Servo Motor and Driver, Italian HSD ATC spindle .

2. Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.

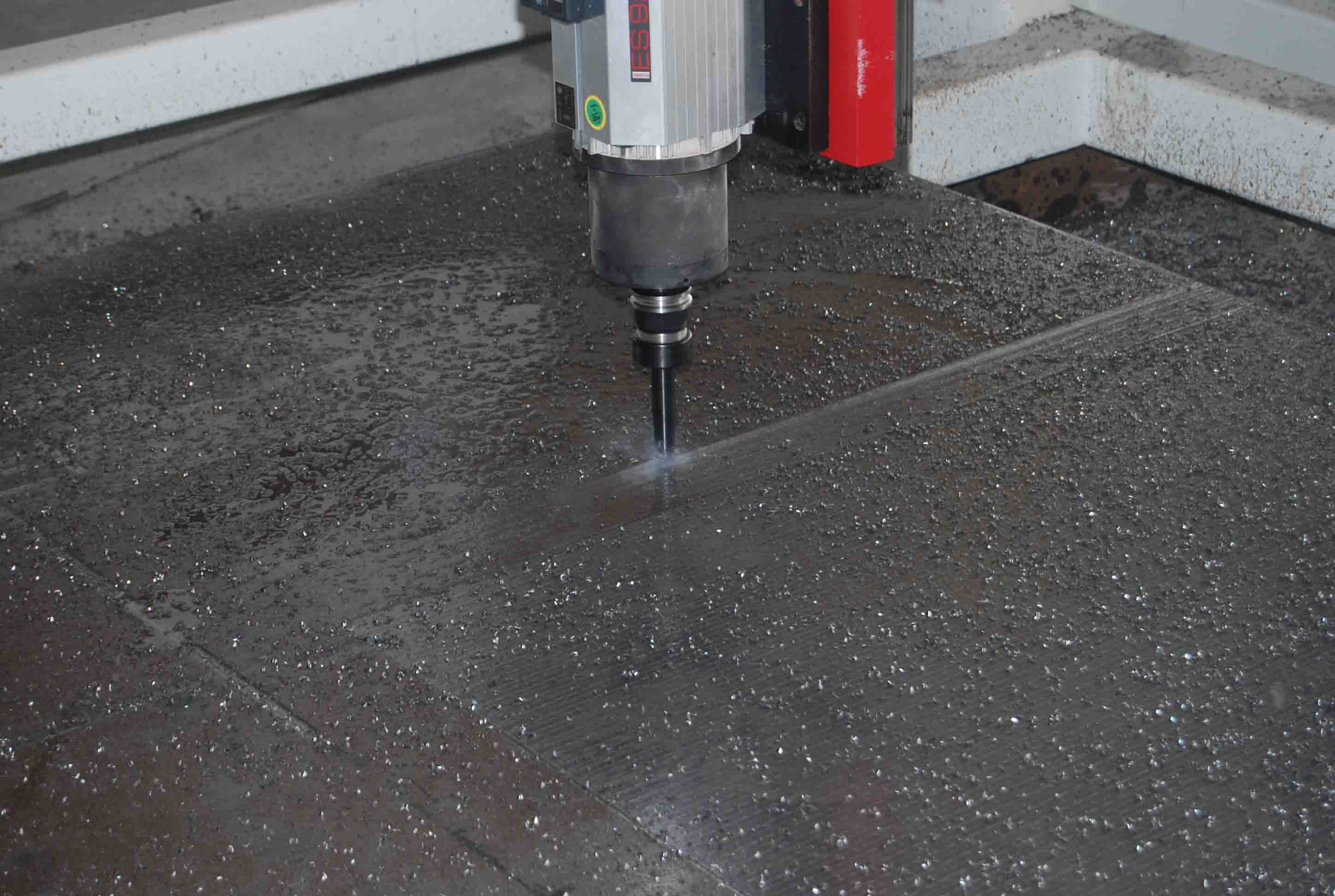

3. Mold industry: Foam processing of automotive stamping dies,, wooden model aviation, etc.

Technical parameter	RCH2040
X,Y,Z Traveling Area	20004000900mm
Table	Milling steel table
Frame	Welded Structure
X,Y,Z Drive System	Ball screw
Max Velocity	40000mm/min
Max Working Speed	25000mm/min
Spindle Power	9Kw HSD ATC spindle
Spindle Speed	0-24000rmp
Driving System	Yaskawa Servo Motors
Working Voltage	AC380V/50HZ
Command Language	G Code
Operating System	Syntec Control
Software	Type3/UCancamV9 (Optional: Artcam ) Type3/UcancameV9 Software (Option: Artcam Software)
