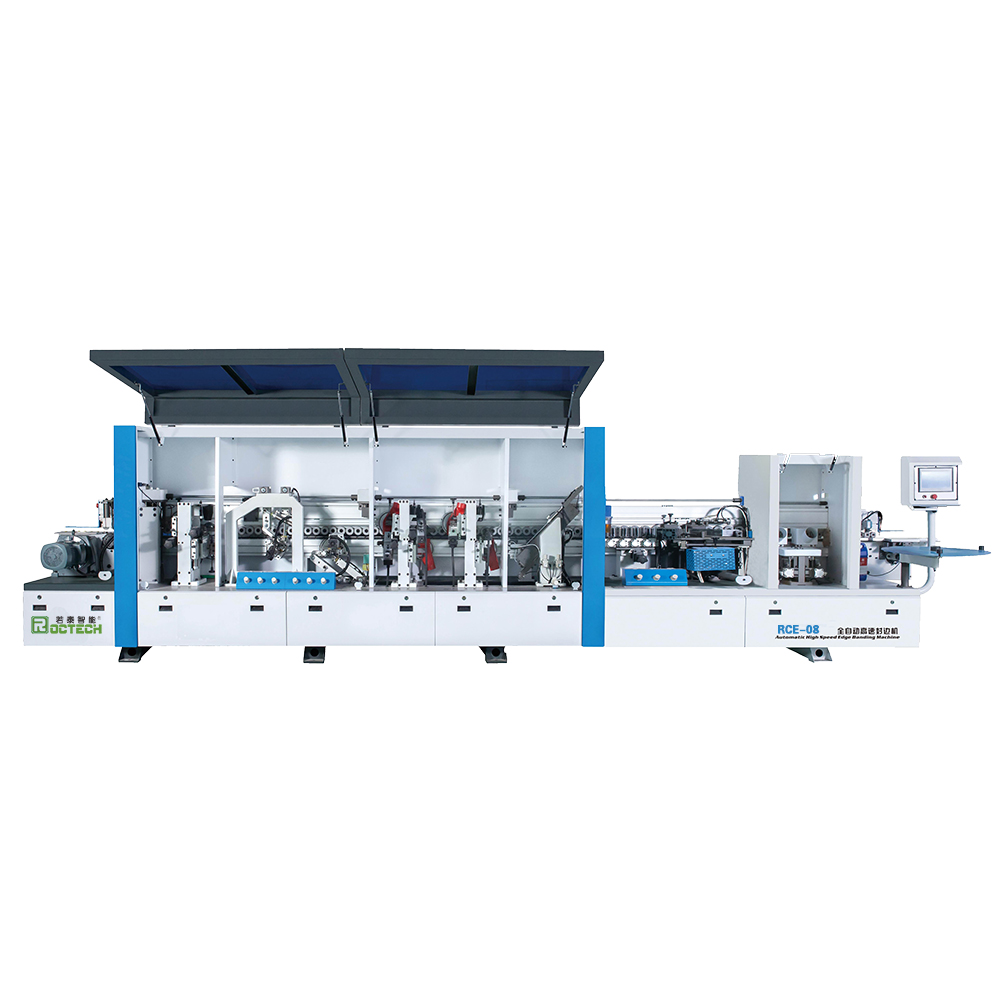

Edge Banding Machine E08 7CJM

Model: RC-E08
Category: High Effecient Line
Brand: Roctech®

The automatic edge banding machine is automatic in production, high in efficiency, reasonable in design structure, stable in performance, stable in operation and reliable in durability; It is equipped with top configurations such as separation device, pre milling device, gluing device, four-wheel pressing device, end trimming and tail trimming device, phase repair and finishing device, tracking device, edge scraping device, cleaning device, polishing device, electric lifting device, etc. With high operation precision and exquisite and beautiful finished products, it is suitable for automatic production line furniture of large and medium-sized batch furniture enterprises.

The video about Edge Banding Machine RCE08 7CJM

E08

Technical Parameter of Edge Banding Machine RCE08

Model

RCE08

Panel Min.size

120*60mm

Panel Min.width

300*60mm

Panel thickness

10-60mm

Edge band thickness

0.4-3mm

Edge belt width

15-65mm

Feed speed

15-23m/min

Air pressure

0.6Mpa

Total power

17kw

Dimensions

6800mm*900*1580mm

Net weight

2500kg
